Description

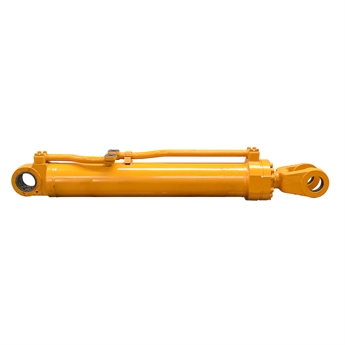

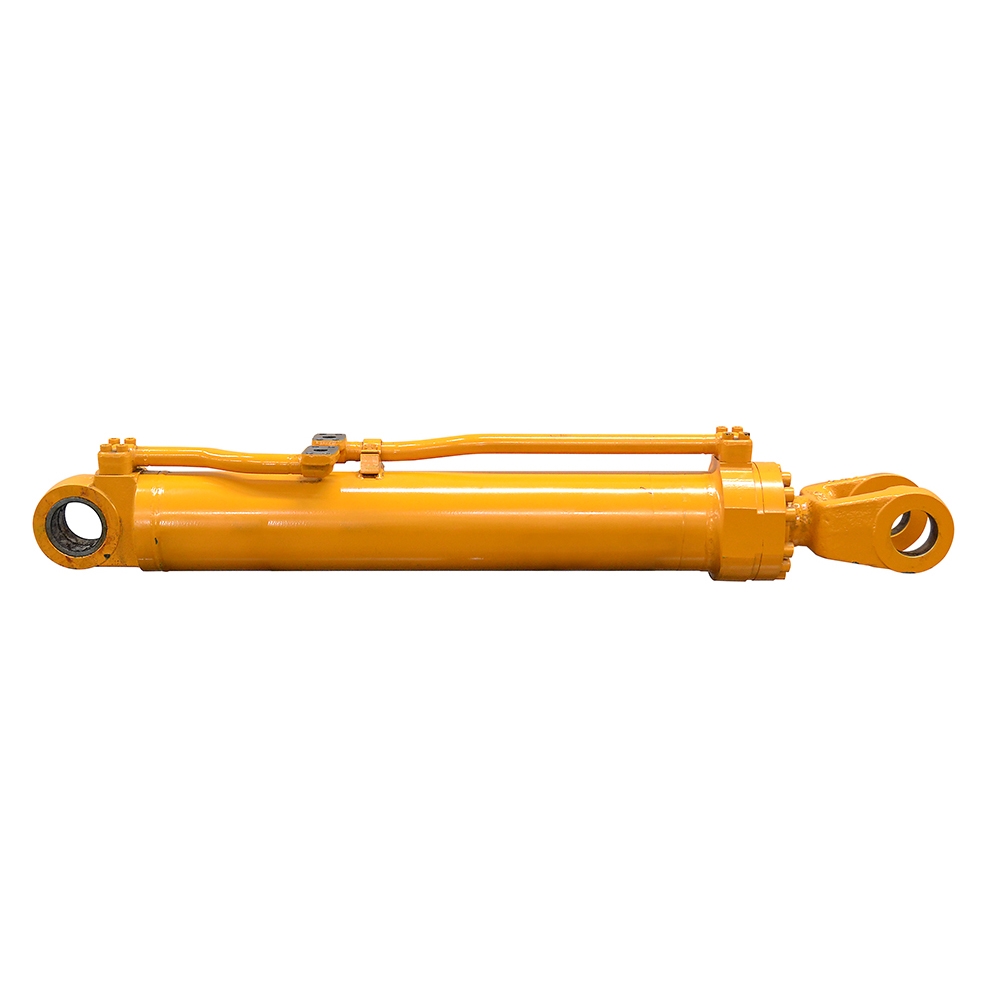

4.67"(120mm) x 28"(711mm) x 2.75"(70mm) DA HYD CYL
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 31L7-00080.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.67"(120mm) x 28"(711mm)
  • Barrel Thickness 0.391"
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 2.75"(70mm)
  • Ports 4 bolt 3/4" code 61 flange size 12
  • Retracted Length 45"
  • Gland Face to Rod Pin Center 7"
  • Shpg. 237 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 6.265"
  • Inside Width 3.506"
  • Throat Depth 5.643"
  • Pin Hole 2.575"(65mm)
  • Base End Tang
  • Width 2.96"
  • Pin-Center-To-Tang-End 2.4"
  • Pin Hole 2.76"(70mm)
