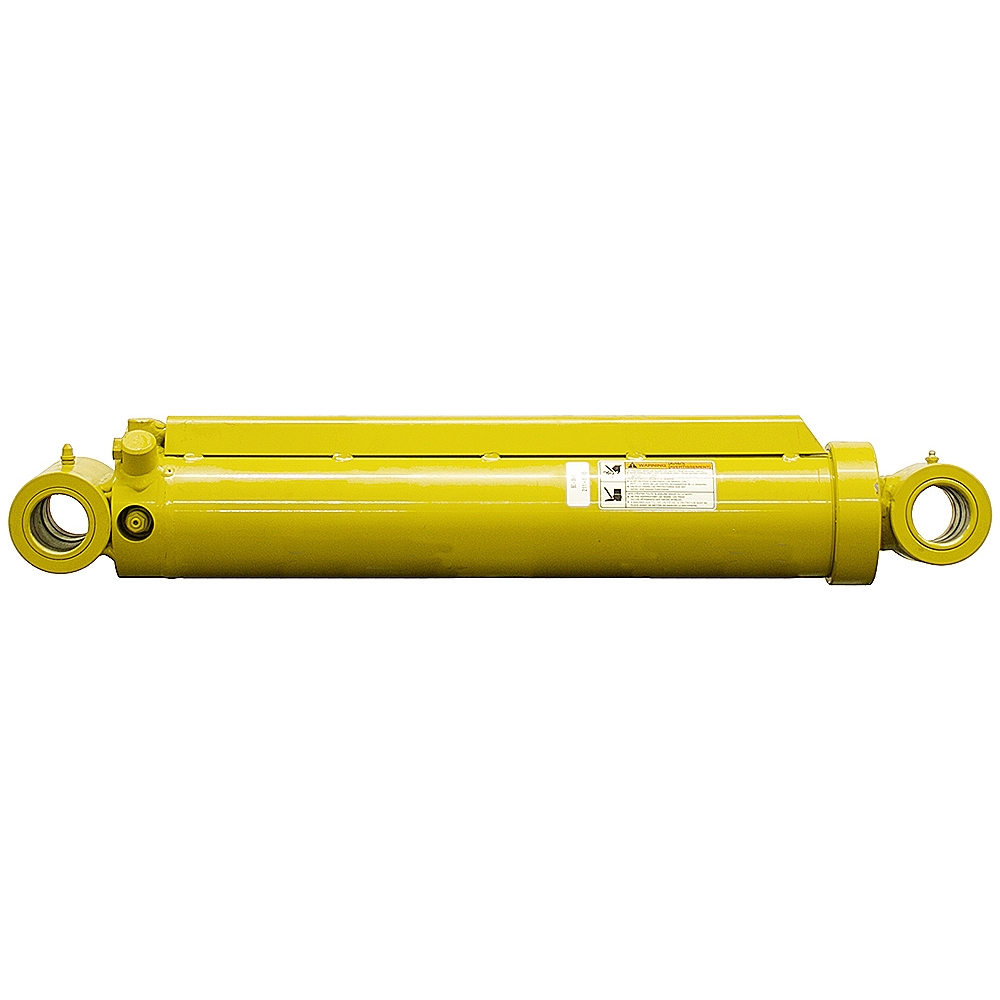

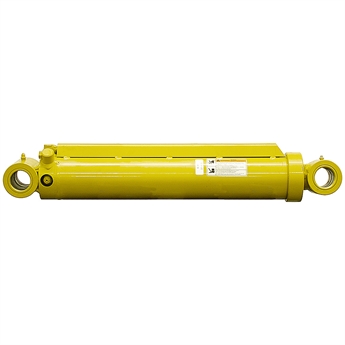

4" x 19" x 2.5" DA HYDRAULIC CYLINDER
New, Prince Mfg model# BC-0668 welded cylinder with thread-on gland cap. Cylinder features one SUN model CBCA-LHN standard capacity counterbalance valve with 3:1 pilot ratio and 15 gpm capacity, factory set at 3000 PSI. Ports offset 70° from each other, both face base end of cylinder.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 4" x 19"
- Barrel Thickness 7/32"
- Pressure 3000 PSI max.
- Rod Dia. 2-1/2"
|
- Ports SAE 6
- Retracted Length 30"
- Shpg. 94 lbs.
|
END MOUNTINGS |
|
- Rod End Crosstube w/ Bushings
- Width 4"
- O.D. 3-1/2"
- Pin Hole 2"
|
- Base End Crosstube w/ Bushings
- Width 4-3/4"
- O.D. 3-1/2"
- Pin Hole 2"
|
