2.32 cu in Hydraulic Clutch Pump w/ 7" Double Groove V-belt Pulley Bailey 252349

HYDRAULIC CLUTCH PUMP

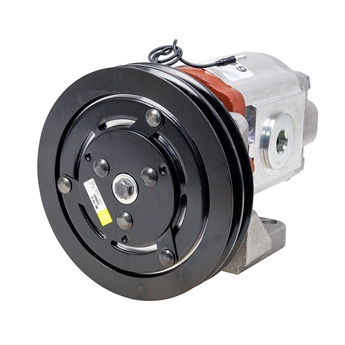

Brand new, Bailey 252349 hydraulic clutch pump with 7" double groove V-belt pulley. Aluminum pump body. Compact design featuring double shaft seals, rear, and side ports (side ports with steel plugs). Assembly features Salami 2.5PB-38 gear pump, Ogura MA-7A-C electromagnetic mobile clutch and Hydra Mount aluminum foot mount.

SPECIFICATIONS

• Brand Bailey
• Part Number 252349
• Clutch Pulley Two, A groove 7" dia.
• Clutch Static Torque 90 ft. lbs.
• Clutch Power 12 Volt DC, 47 Watt, 3.9 Amps
• Pump Displacement 2.32 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure 2900 PSI
• Speed 400-2750 RPM
• Flow 27.1 GPM @ 2698 RPM
• Mount Four 0.5" diam. holes on 4" x 2" centers
• Inlet Port SAE 20
• Outlet Port SAE 12
• Size 8-1/2" x 7" x 7"
• Shpg. 30 lbs.
